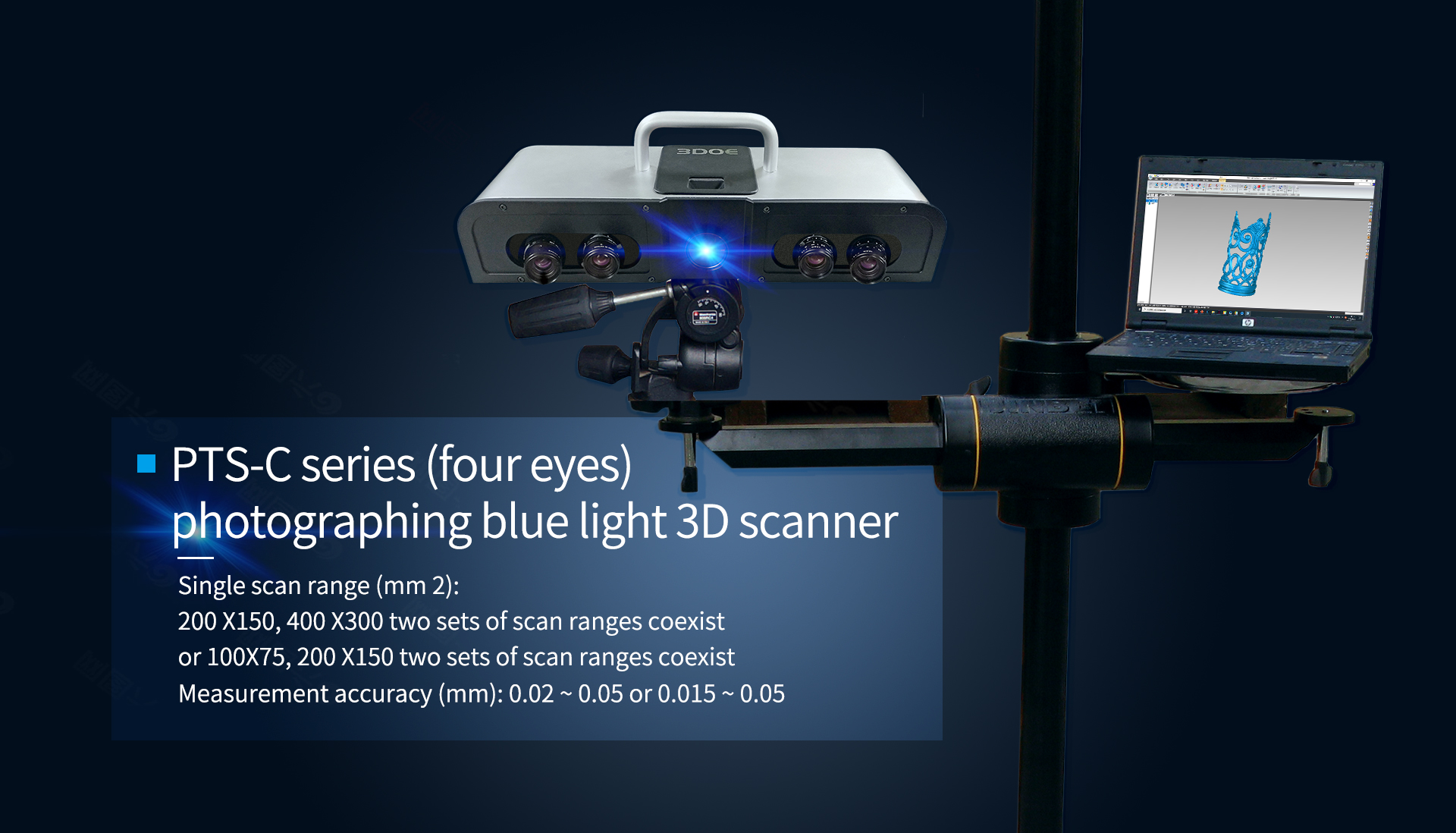

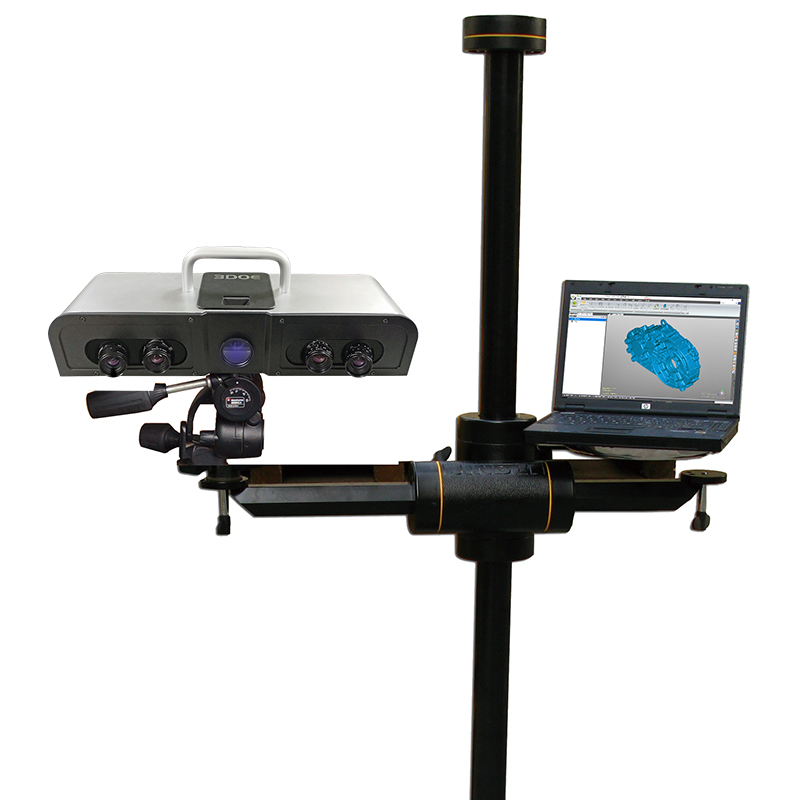

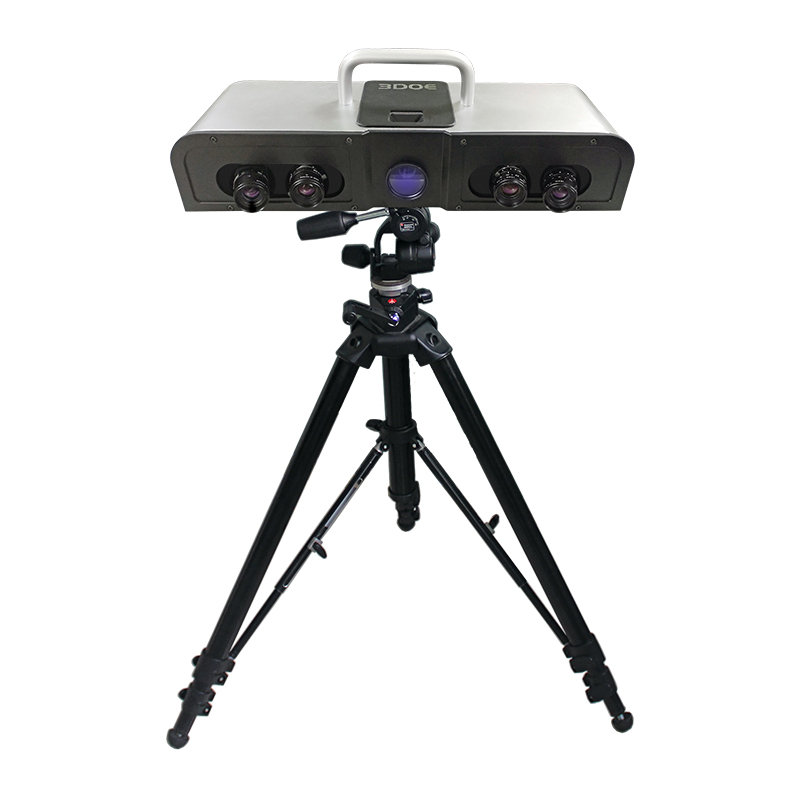

PTS-C series 3D scanner adopts an integrated structure design style, high hardware integration, and can freely switch between different measurement ranges. It adopts fully autonomous hardware control technology, industrial-grade high-speed 3D scanning, and the single scanning speed can reach 1.5 seconds, which has better precision and better dynamic applicability.

Features:

? Non-contact blue light raster scanning, the light source is fine. Adapt to the measurement requirements of soft and easily deformable objects.

? Both multi-color light scanning technology, better sensitivity adaptability.

? The camera resolution is optional from 1.3 million to 2 million.

? Higher detail display, measuring accuracy 0.015~0.05mm.

? Automatic splicing of marked points, intelligent fusion into a single-layer point cloud.

? Optimized processing technology for large data volume.

? The equipment hardware is small in size, occupies a small area, and is portable to the measurement site. The scanning equipment can be moved when scanning large and heavy objects.

? The scanner is easy to operate and can be used proficiently within 1-2 days of training.

Self-developed and manufactured, independent software intellectual property protection software is continuously upgraded for free, professional R & D team, provide 24-hour machine service, can be customized according to customer needs.

Difference between binocular and quadruocular :

Binocular : The camera position is adjustable or can have multiple sets of scanning range. Switching scanning range requires recalibration.

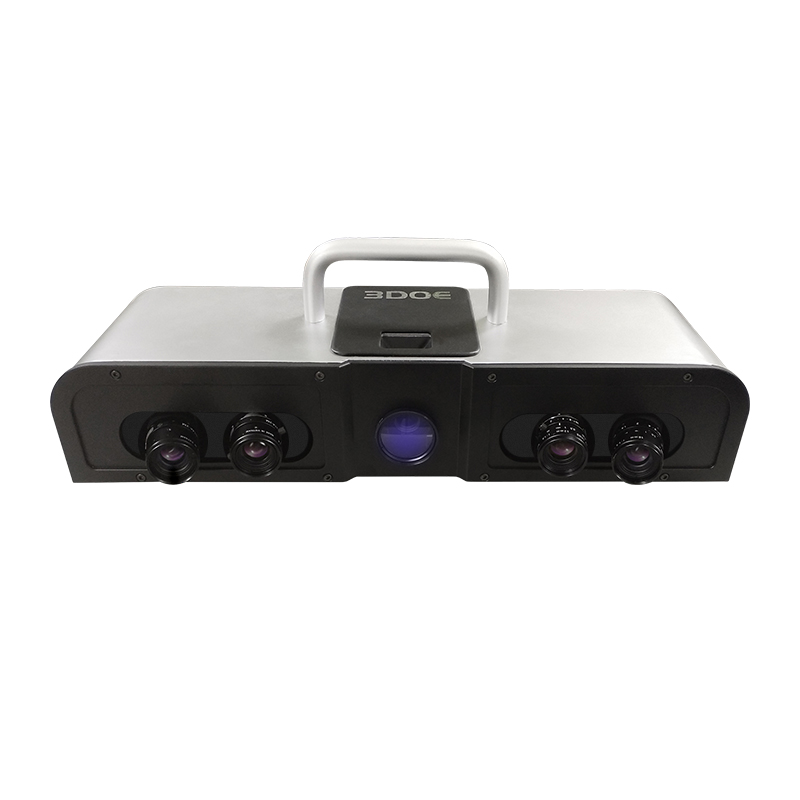

Four -eyes: It has two scanning ranges, namely two groups, which can be switched freely. For example, after scanning an object of 4 meters, an object of 1.5 meters can be changed directly without adjusting camera Angle and correction.

Photographic 3D scanner-measurement principle

The 3DOE 3D measuring head is composed of two high-resolution industrial CCD cameras on the left and right and a grating projection unit. The structured light measurement method is used to project a group of grating fringes with phase information onto the surface of the measured object using the grating projection unit. The two cameras on the left and right can measure simultaneously, and combine computer vision technology, photoelectric sensor technology, image processing technology and software control technology to obtain high-density three-dimensional data on the surface of the object in a very short time. The rotating object or scanning head is used to change the scanning angle of view. Based on the automatic splicing technology of multi-view point cloud, it can complete 360° scanning of the object in all directions.

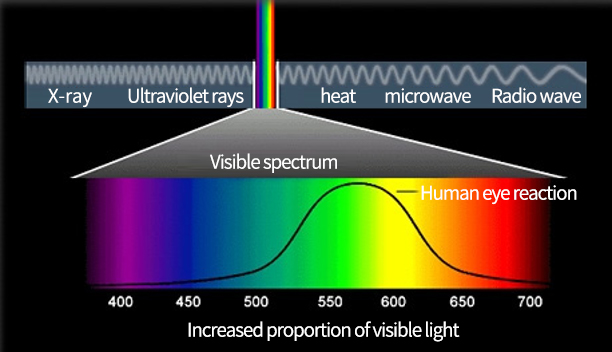

Advantages of blue light: The shorter the wavelength, the better the reflectivity, and the better the imaging effect for objects with complex textures!

?  Classic cases

3D scanning of mobile phone case

3D scanning of crafts

?  Technical Parameters

?  Application field

●Auto Parts

●Industrial Design

●Reverse design (copy number)

●Mold design and inspection

●Handicraft Scan

●Wood carving scan

●Clothing Design

●Game production

●Household appliances

●Electronic Products

●Teaching Research

●Cultural relics and archaeology

To understand the specific application, please feel free to consult online (message) or

call 0755-86131192!

Provide system customized solutions!
