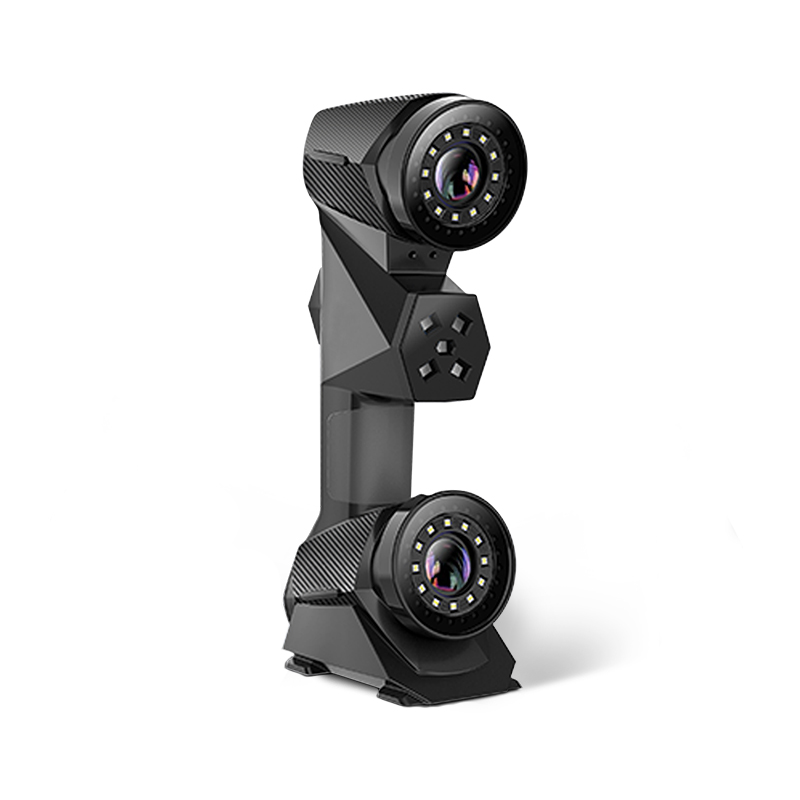

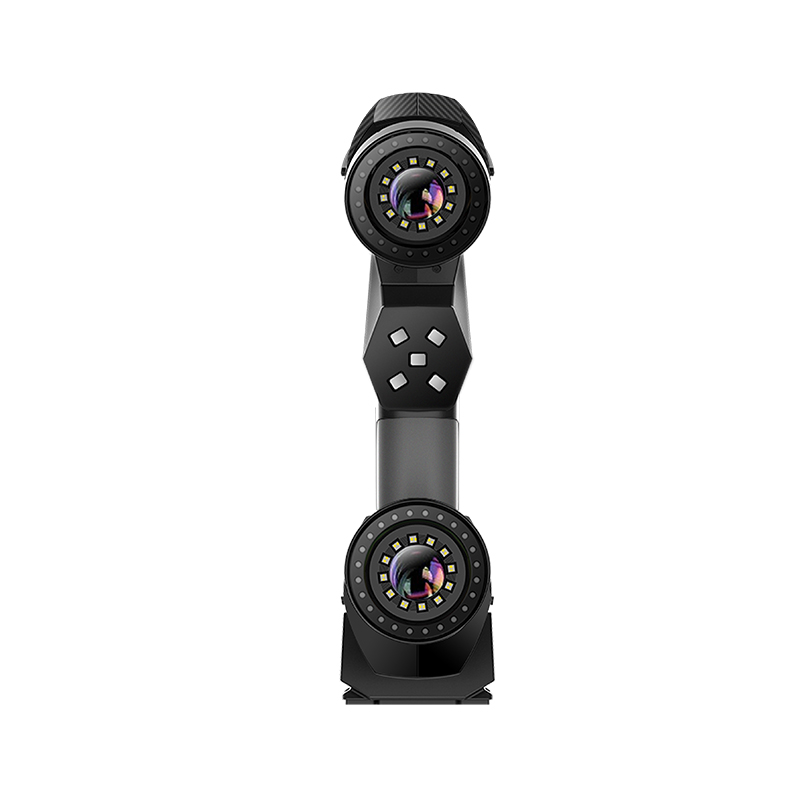

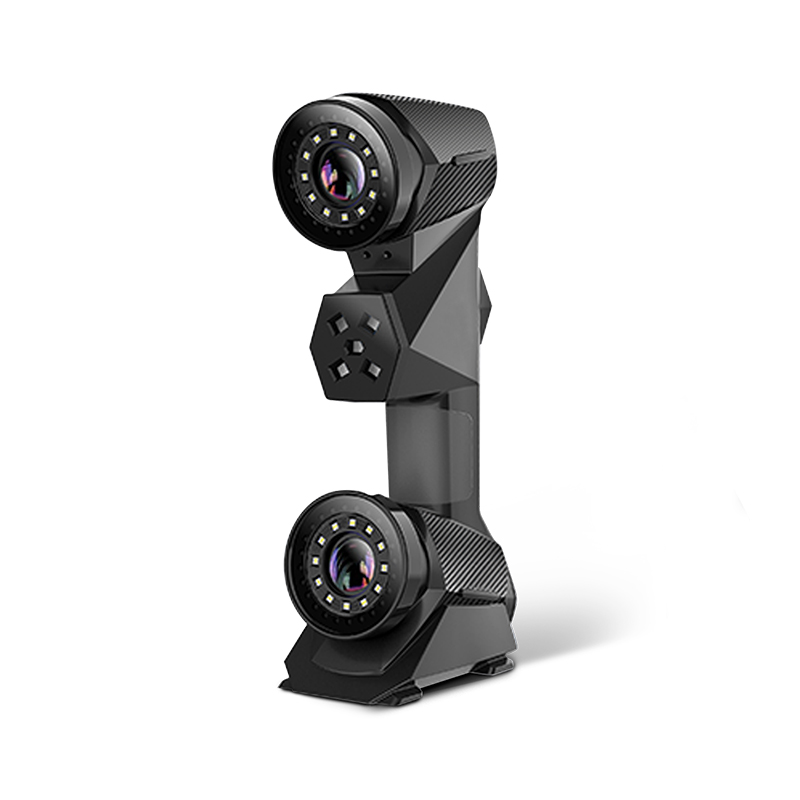

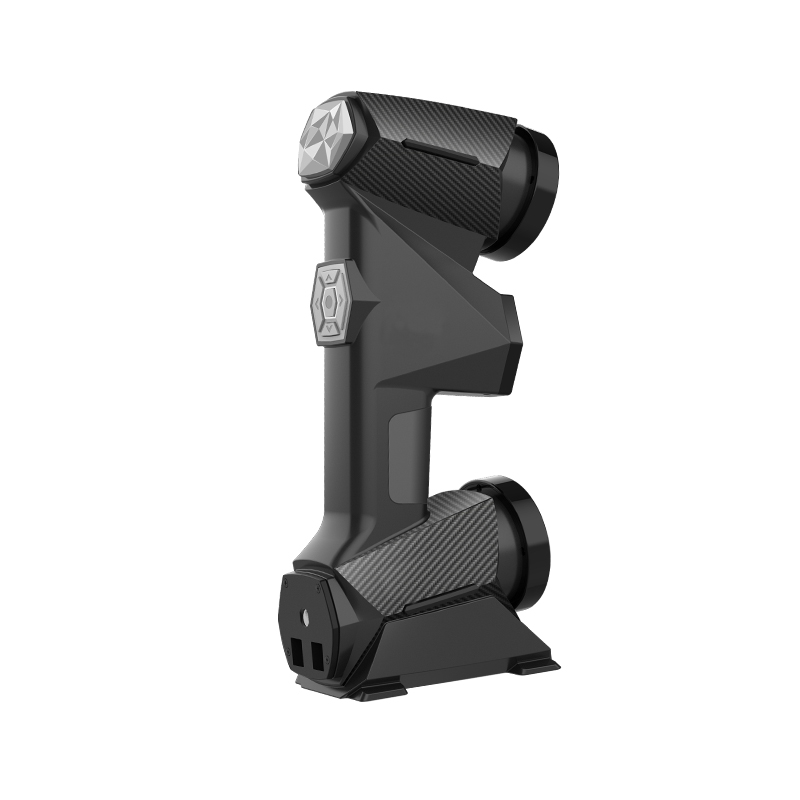

eSharp P13 Handheld 3D Scanner (Blu-ray) is a new generation of technological innovation products. It has a large scanning range and high-efficiency scanning speed, as well as high precision and high resolution. It is now more adaptable to the surface of scanned workpieces and is widely used Quality inspection and control, reverse design, 3D display, automobile manufacturing, mold manufacturing, castings and forgings, 3D printing, education and scientific research, VR?AR, etc.
The eSharp P13 handheld 3D scanner (blue light) is a new generation of technological innovation products, with a large scanning range and high-efficiency scanning speed, as well as high precision and high resolution, and now it is more adaptable to scanning the surface of the workpiece. It is widely used in quality inspection and control, reverse design, 3D display, automobile manufacturing, mold manufacturing, castings and forgings, 3D printing, education and scientific research, VR and AR, etc.
Features
1. High-efficiency scanning: A total of 41 blue laser lines, the maximum scanning format can reach 550x550mm, the speed is increased and the accuracy is also increased by 50%, the single-frame output efficiency is increased by 3 times, and it has become an industrial-grade 3D scanner fighter.
2. More adaptable: for scanning the surface of the workpiece with black, reflective material, and multi-color, no surface treatment is required, and it can easily scan complex workpieces with mixed black and white
3. Built-in measurement function
According to the actual product, different ways of alignment, measurement, comparison and detection can be carried out, which can realize the detection and analysis of full-size and geometric tolerances, and automatically generate inspection reports.
4. Ultra-fine scanning (high precision)
5. A variety of model measurement functions: hole position flash measurement technology, easy to deal with complex hole position measurement, measurement and detection functions: point, line, surface, cylinder, cone creation, angle, flatness, roundness, cylindricity, etc., No third-party 3D processing software is required.
? Classic cases
? Technical Parameters
Product number | eSharp-P13 series | |
Standard mode | Fine mode | |
Measuring speed | 1,600,000 measurements/sec | 900,000 measurements/sec |
light source | Laser 26+1 beam | Laser 14+1 beam |
weight | 1kg | |
Size（mm） | 138×295×72 | |
Scanning area（mm） | 500x500 | |
Measuring accuracy（mm） | Up to 0.02 | Up to 0.01 |
Volume accuracy（mm/m） | 0.02+ 0.04 | -- |
Volume accuracy (mm/m) (Combined with 3D photogrammetry system) | 0.02+ 0.025 | -- |
Laser category | ClassII eye safety level | |
Resolution（mm） | Up to 0.01 | |
Depth of field（mm） | Max 450 | |
Working distance（mm） | 350 | 200 |
transfer method | USB3.0 | |
Working temperature (Celsius) | -20~40 | |
Working humidity (non-condensing) | 10~90% | |
Data output format | .stl, .obj, .asc, .ply, .txt, .xyz, etc., can be customized. | |
Compatible software | 3D Systems（Geomagic Solutions），InnovMetric Softwre（PolyWorks）， Dassault Systems（CATIV V5和SolidWorks），PTC（PRO/ENGINEER）， Autodesk（inventor、Alias、3ds max、Maya、Softimage），Siemens（NX和Solid Edge） | |
? Application field
Automobile manufacturing, mold manufacturing, aerospace, heavy industry machinery, 3D printing, education and scientific research
Aerospace: Reverse rapid prototyping, MRO and loss inspection, component and assembly inspection
Automobile industry: styling and design (mud truck), car modification, car interior customization, auto parts quality inspection and measurement
Mold industry: reverse engineering, quality control and size inspection, wear analysis, virtual assembly
Casting molding: quality monitoring and inspection of rough castings, design reference for rough castings (calculate reserved amount)
To understand the specific application, please feel free to consult online (message) or
call 0755-86131192!
Provide system customized solutions!
