eSharp-PGS Handheld color 3D scanner

所属分类:

产品型号:eSharp-PGS

The eSharp-PGS handheld color scanner can quickly obtain the surface color 3D data of the object and restore the real texture of the object. It has the characteristics of portability, high precision, non-contact scanning, etc.; no marking points, guided operation experience, light weight and easy operation , Intensive packaging, easy to carry, safe transportation, multi-function scanning, taking into account various needs.

0755-86131192

产品介绍经典案例技术参数应用领域联系我们

? Features

1.Dual scan mode：There are two modes of handheld fast scanning (speckle projection) and fixed automatic scanning (raster fringe projection).

2.Fast and precise scanning：Scanning is fast, capturing images at a measurement speed of 550,000 times per second and an accuracy of up to 0.1mm and processing them simultaneously.

3.True colors：At the same time, the shape and color texture information of the measured object are captured, and the color of the scanned data is real and lifelike.

4.Versatile：It can scan a variety of objects, the handheld type is suitable for large and medium-sized objects, and the fixed type is suitable for small objects.

5.Friendly user：Scan moving objects in real-time 3D video mode, and the images will be automatically aligned in real-time.

6.High resolution：The scanned data has clear details, and the resolution can reach up to 0.1mm.

7.No need to mark：You don't need to make any mark on the object, turn on the scan, nothing more.

8.Lightweight and portable：The whole machine is 0.56kg, small and light, for you to carry and use.

9.Safe to use：The scanner uses white light LED, which is safe and harmless to human body scanning.

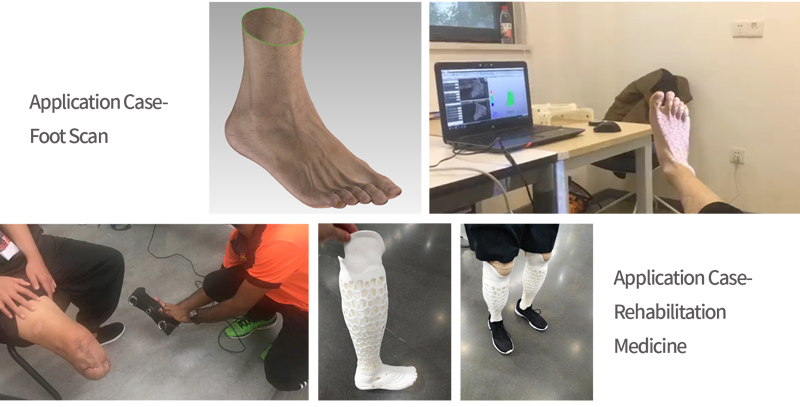

? Classic cases

? Technical Parameters

Product number	eSharp-PGS
Scan mode	Handheld quick scan	Fixed automatic scanning
Projection method	Speckle/Fringe Projection	Raster fringe projection
Precision	Up to 0.1mm	Up to 0.05mm
Volume accuracy	0.03mm/m	Not applicable
Scan rate	550,000 measurements/sec	Single scan time<2s
Resolution	Up to 0.05mm	0.02mm
Recommended scanning object size	0.15-4.00m	0.03-0.25m
Positioning method	Feature stitching, marking point positioning, hybrid stitching	urntable splicing, feature splicing, marking point positioning
Reference distance	400mm
Depth of field	200mm
Single scan range	259 x 185mm
light source	White LED
Texture mapping accuracy	1 pixel
System Support	Win7 (64bit), Win10 (64bit)
