Glasses frame 3D scanning reverse design mold opening production solution

Wide-ranging 3 d industry, in a short period of time to create a more reasonable and match the industrial chain is still exist many difficulties, especially the 3 d modeling, 3 d modeling technology as an important branch in the field of 3 d application, facing the high cost of 3 d modeling, 3 d model of long production period, simple 3 d modeling methods and other issues, difficult to adapt to the challenges brought by the rapid development of 3 d technology, but using a 3 d scanner to data collection, and data, then draw 3 d modeling, from saving time and artificial cost, provides the production efficiency.

Customer demand:

1. Quickly obtain 3D data of spectacle frame for reverse design

2. Open mold for mass production after reverse design

3. The special radian and curved surface of the spectacle frame should be completely scanned out

3D scanning reverse mold production solution for glasses frame

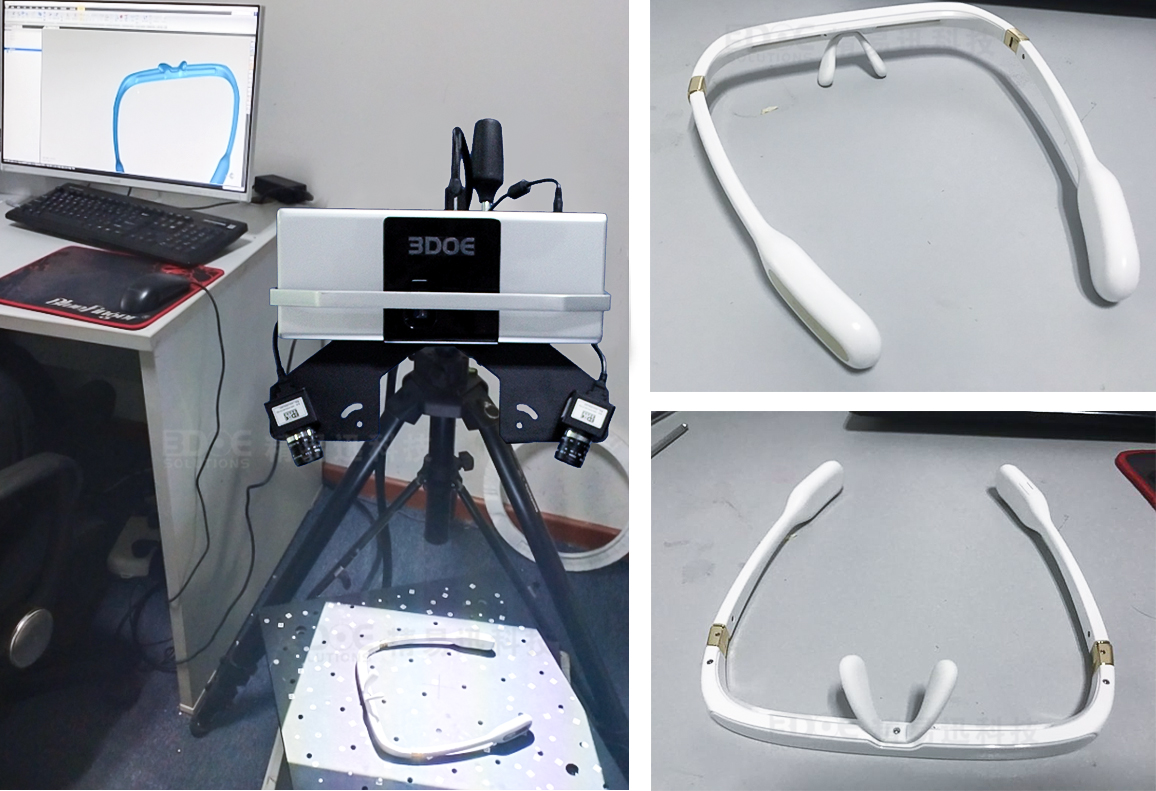

1. Preparation before scanning and scanning method:

<1>. Both sides of the glasses legs will be bent and need to be fixed first;

<2>. Some parts of the spectacle frame are golden and reflective. Since the developer cannot be sprayed, you can use cosmetic glue to stick to the reflective part;

<3>. Although it is inevitable that there will be jitters when the two glasses legs are fixed, in order to avoid movement of the two glasses legs during scanning, use the turntable to scan on both sides

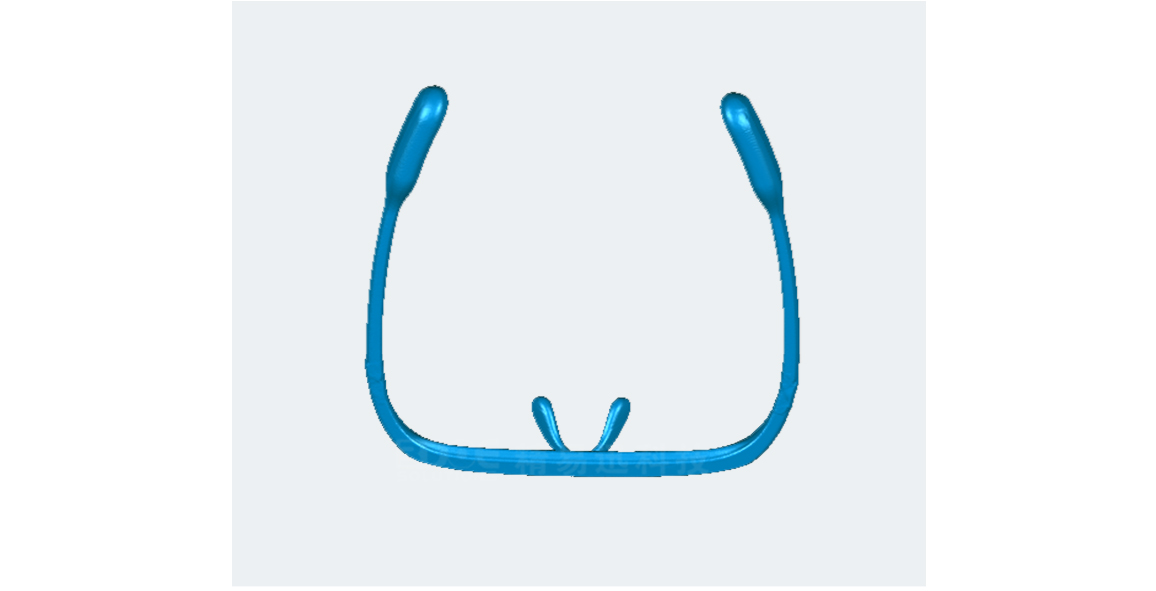

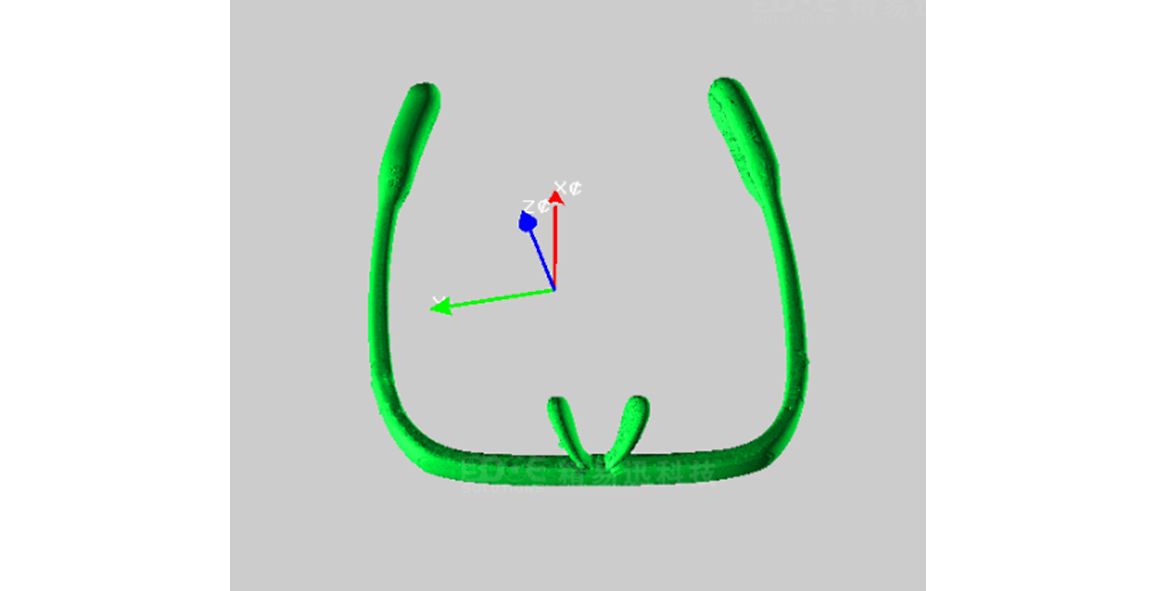

2. Use a 3D scanner to get the precise appearance and 3D size of the product. It only takes 7-8 minutes to scan the 3D data of a pair of glasses and the accuracy of the data is close to micron level. Compared with traditional measurement, 3D scanning saves time and effort. After scanning is completed Export 3D data.

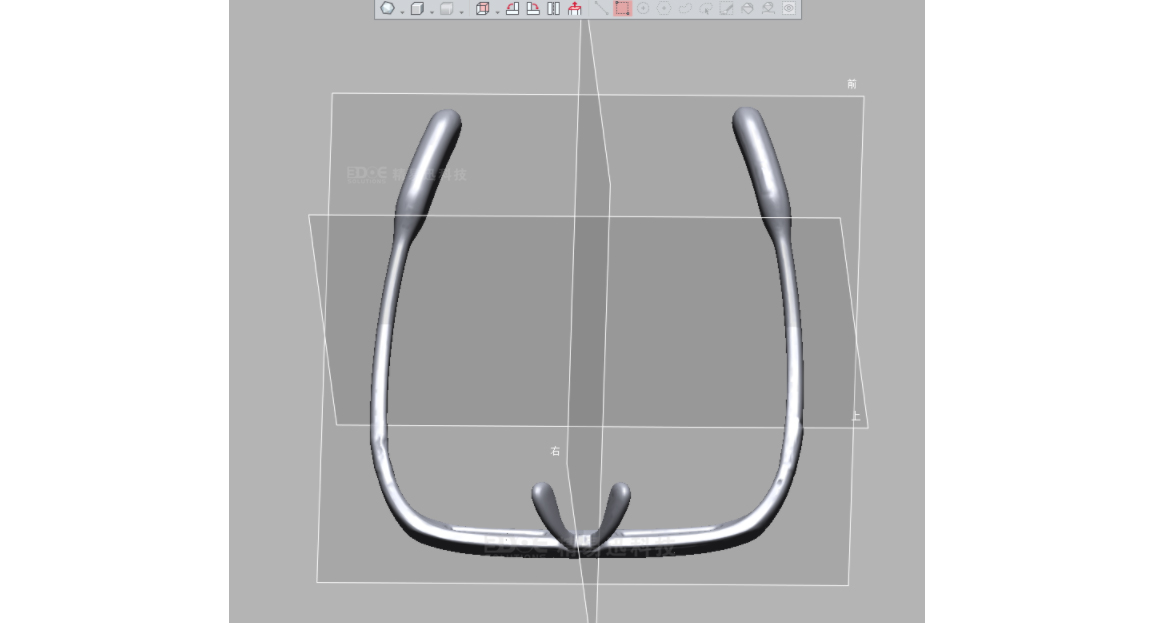

3. Import the 3D drawing software to reverse the design drawing

The 3D data obtained by the customer can be used for the following applications: 3D reverse drawing, or making molds, and 3D printing.

Summary

Fast acquisition of 3D data of spectacle frame, 3D modeling and drawing, save time and labor from cost, improve the design and production cycle, the customer is very satisfied with the scanning speed and accuracy of 3D scanner.
