Nowadays, the production quality inspection of many electronic products adopts high-tech methods. The use of industrial 3D scanners for three-dimensional inspection can reduce labor costs, increase efficiency, and greatly improve accuracy. While designing the game handle structure, it can link sample production and actual production together, and study and consider the production cost and profit together. Industrial 3D scanners can quickly obtain the 3D data of the game handle, which can effectively shorten the design cycle and reduce costs!

Problems that industrial 3D scanners need to solve

1. To quickly obtain the 3D data of the gamepad

2. Three-dimensional inspection of gamepads

Industrial 3D Scanner Case-Gamepad 3D Inspection Solution

PTS-E can quickly complete 3D data collection through non-contact scanning, and is widely used in 3D CAD models and 3D detection and reverse engineering of objects.

1. The 3DOE technical engineer chooses the camera-type 3D scanner PTS series model: PTS-E to scan the gamepad. Approximate time: 5 minutes to obtain the 3D data of the gamepad!

2. Export the 3D data of the gamepad

3. Use the original 3D digital model diagram of the gamepad and the 3D data obtained by the 3D scanner to compare the fit

4. The following is the 3D test report and test parameters of the gamepad

Other apps:

The 3D data of the gamepad can also be used for reverse design, combining innovative structural design and creative appearance design to effectively improve work efficiency!

Industrial 3D Scanner Case-Gamepad 3D Inspection Solution Summary

Jingyixun Technology uses an industrial-grade 3D scanner to scan the gamepad, obtains the 3D data of the gamepad in 5 minutes, and uses the original 3D digital model diagram of the gamepad and the 3D data obtained by the 3D scanner to perform a fitting comparison. Obtain the full-size 3D inspection report of the gamepad, and quickly provide customers with effective 3D inspection solutions.

Related products

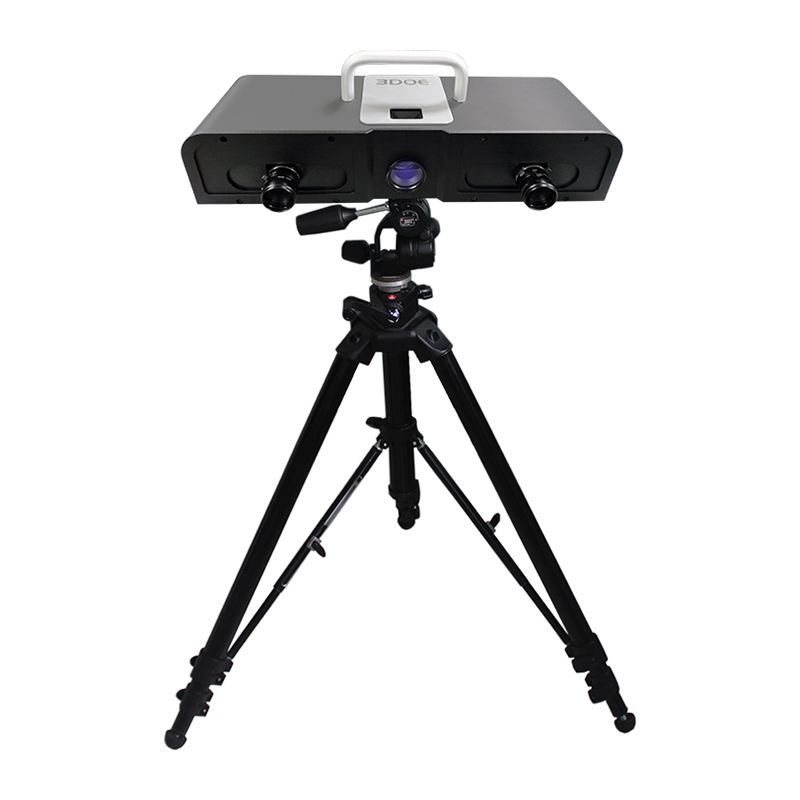

PTS-E series (binocular) photographing blue light 3D scanner
