Household appliances accompany all aspects of our lives, bringing us convenience and comfort. People's lives are inseparable from clothing, food, housing and transportation. First of all, clothes are the closest to life. The so-called people rely on clothing, but after the clothes are washed, if you want to change back to the state before washing, you need to iron it with an electric iron. Electric irons are already a household appliance in almost every household. Therefore, mass production is inevitable. If you want to design an electric iron that people like to buy, you need to continuously improve the appearance of the electric iron, improve the production quality, and meet the needs of people.

Regarding the design and drawing of the soleplate of the electric iron, the following is the solution of using the Jingyixun PTS Blu-ray 3D scanner to do the reverse design drawing:

Customer demand:

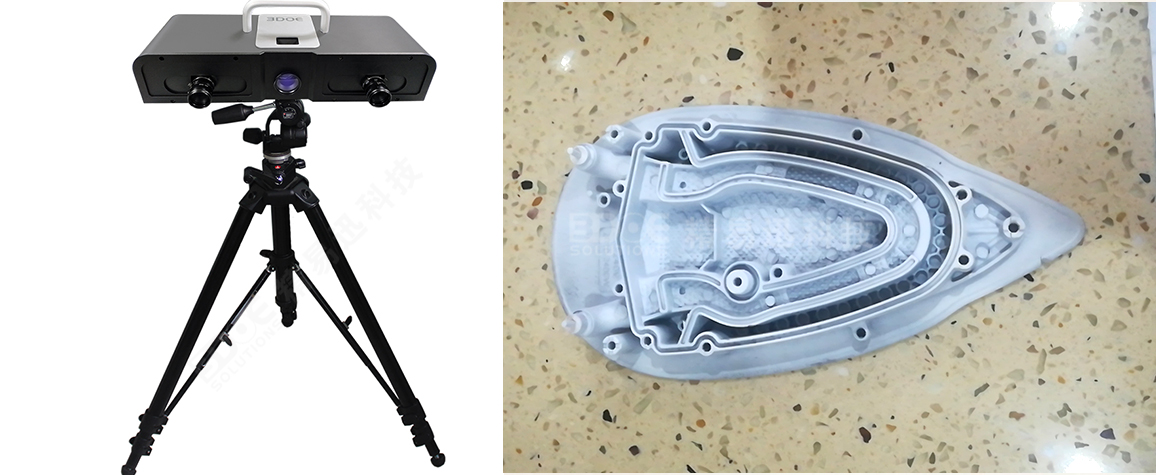

1. Scanning object: electric iron soleplate

2. Customer needs: quickly obtain the three-dimensional model of the electric iron soleplate and perform reverse design, and directly provide a 3D solid map with high accuracy

Current difficulties that customers need to solve:

    Electric iron soleplate requires high precision, beautiful appearance, traditional forward design drawing, slow efficiency, complete data of complex structure parts are difficult to obtain, and the accuracy of product processing is difficult to guarantee

3D Scanning Reverse Solution of Electric Iron Soleplate (Blue Light PTS Photographic 3D Scanner)

1. Preparation

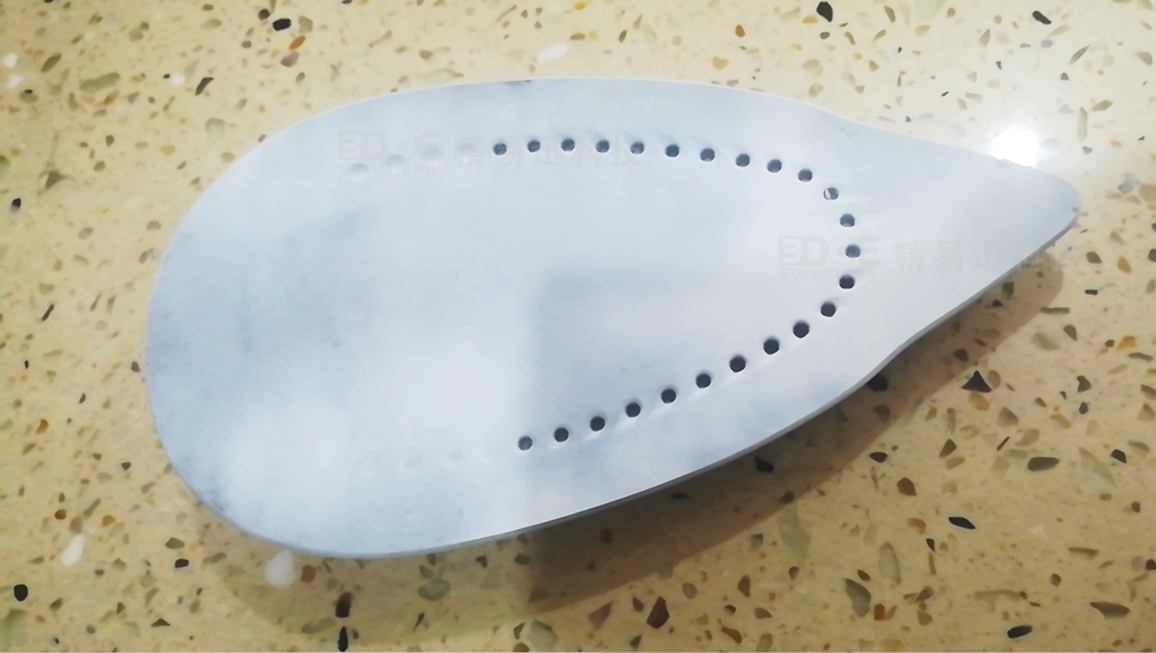

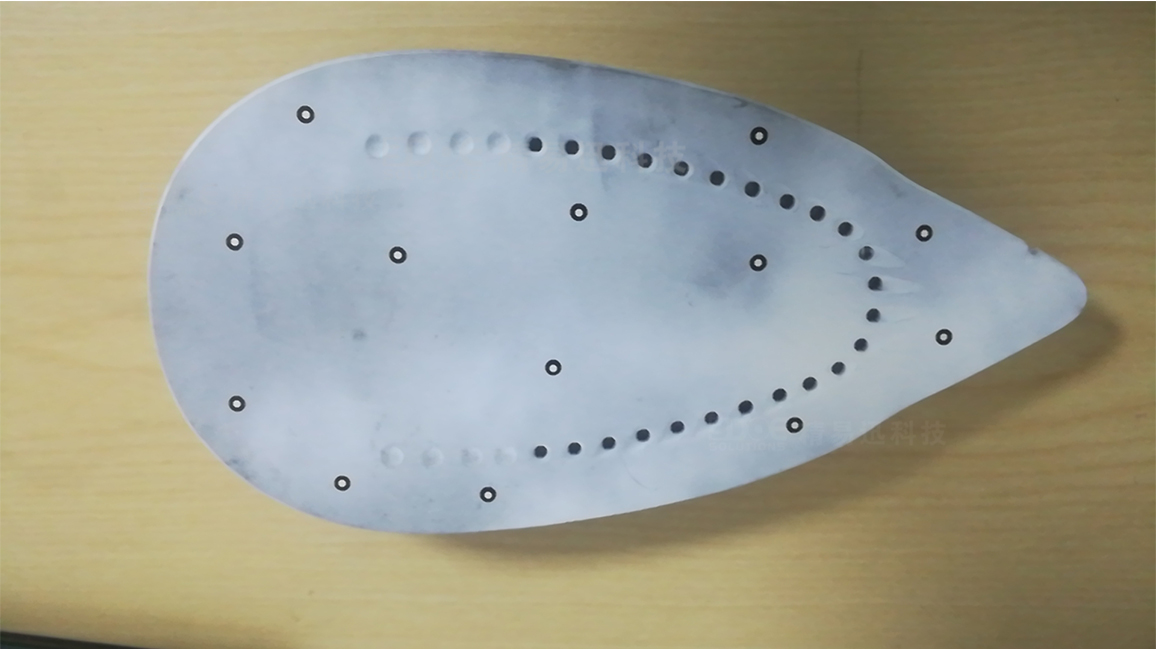

First, surface treatment of the scanned sample:

1) Since the three-dimensional scanner uses optical methods to scan objects, some objects whose surfaces reflect light, transmit light or absorb light need to be surface treated and sprayed with developer.

2) Paste marker points. Mark point splicing is implemented by software algorithm. The three-dimensional scanning system needs to superimpose the common marker points recognized between two frames so that the two scans exist in a unified coordinate system, so as to achieve complete data splicing.

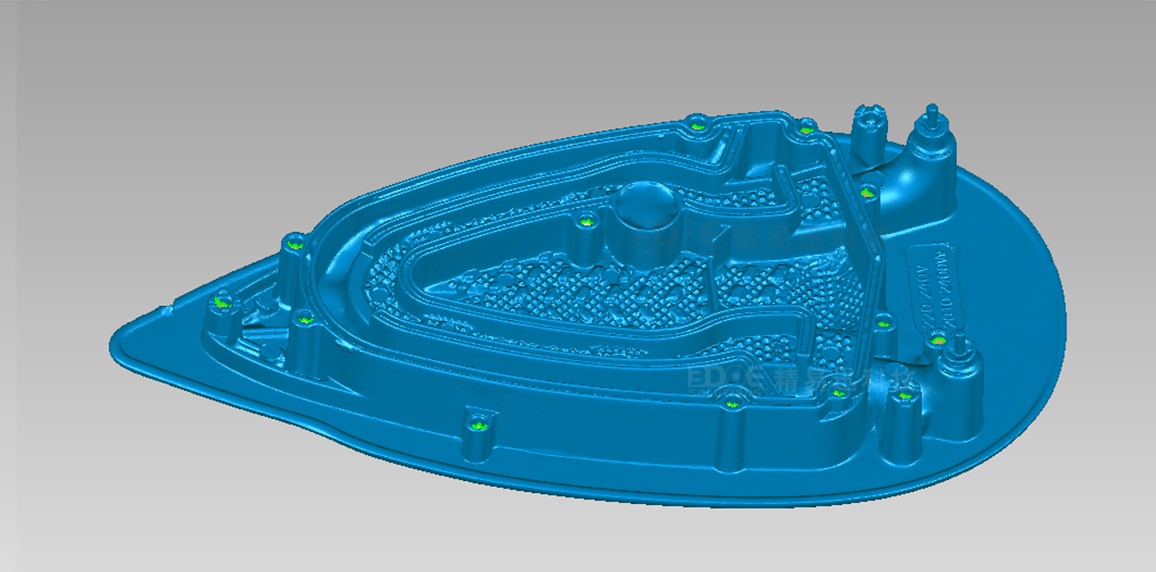

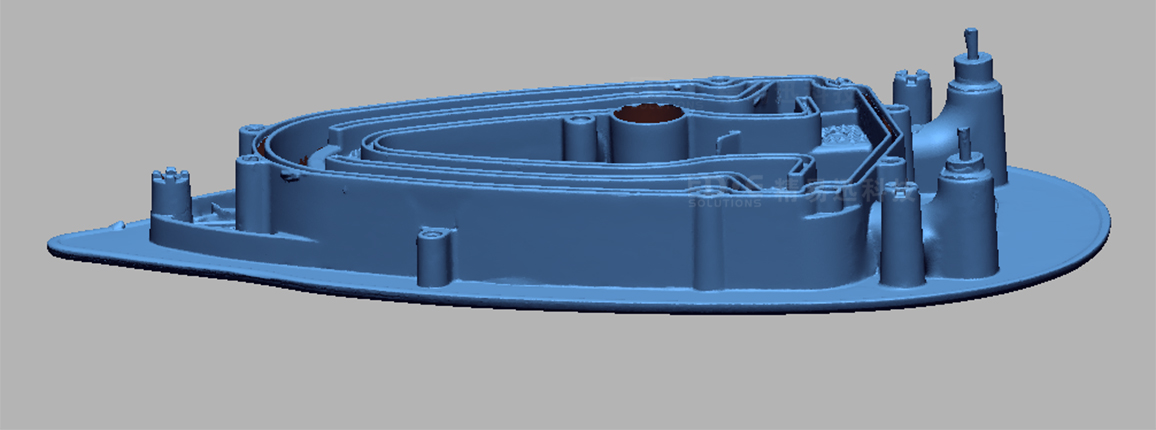

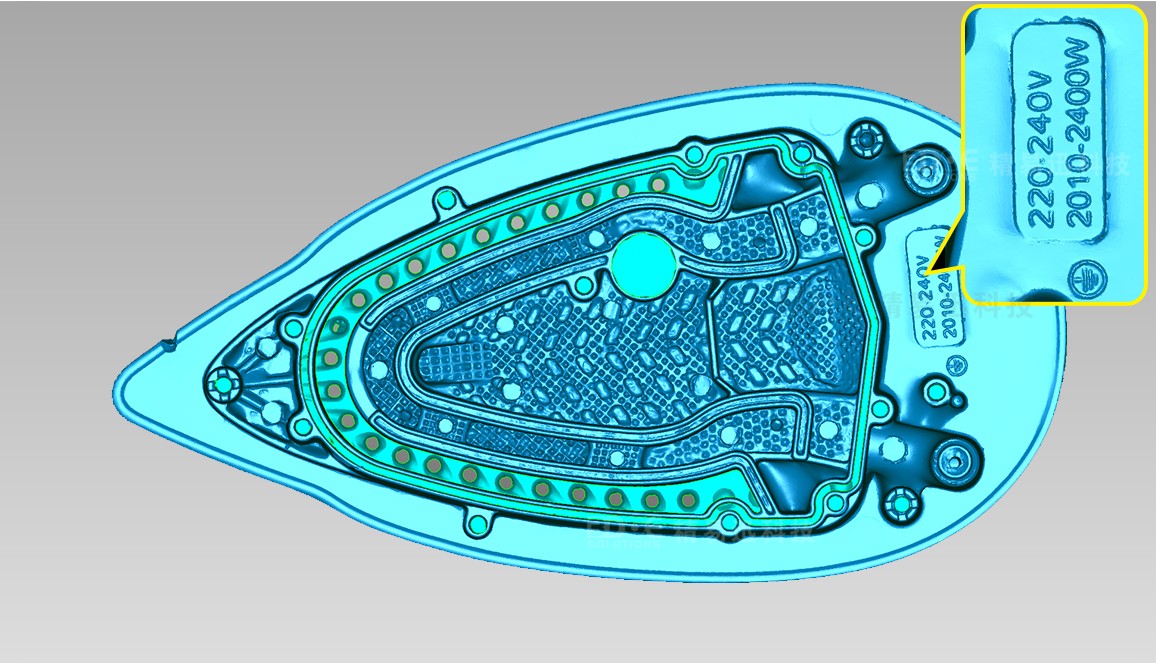

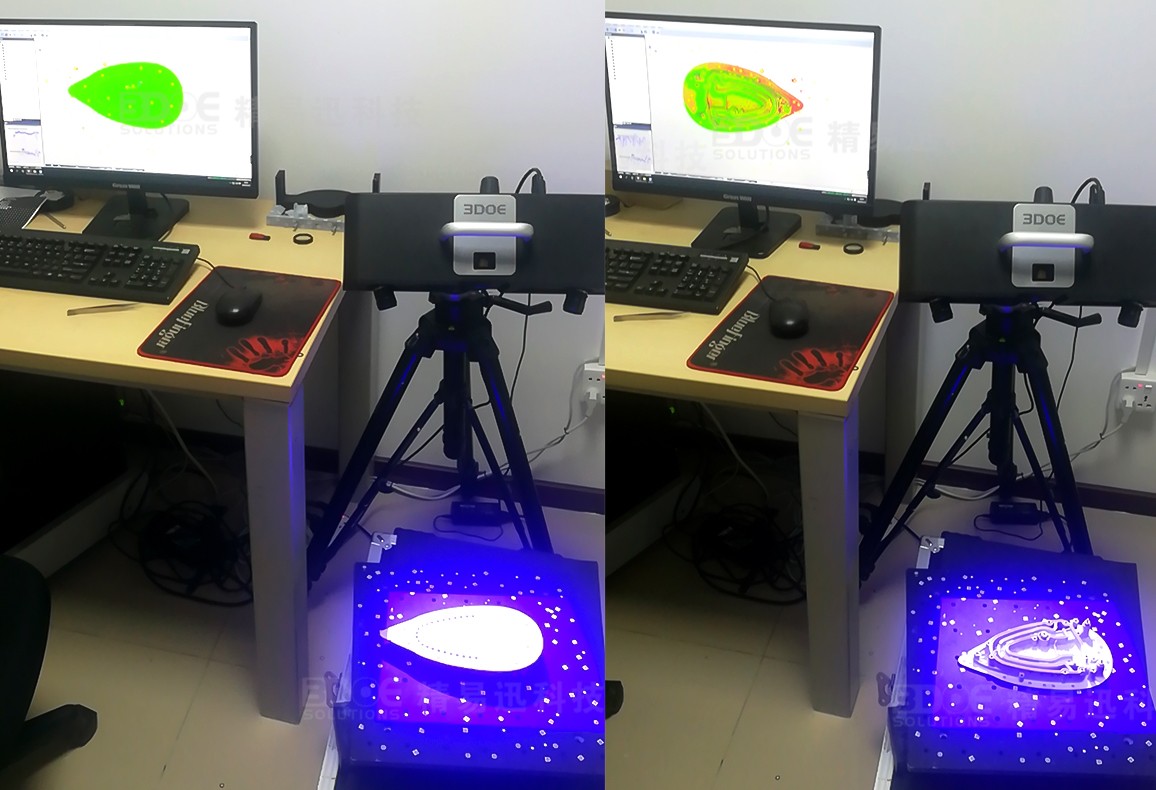

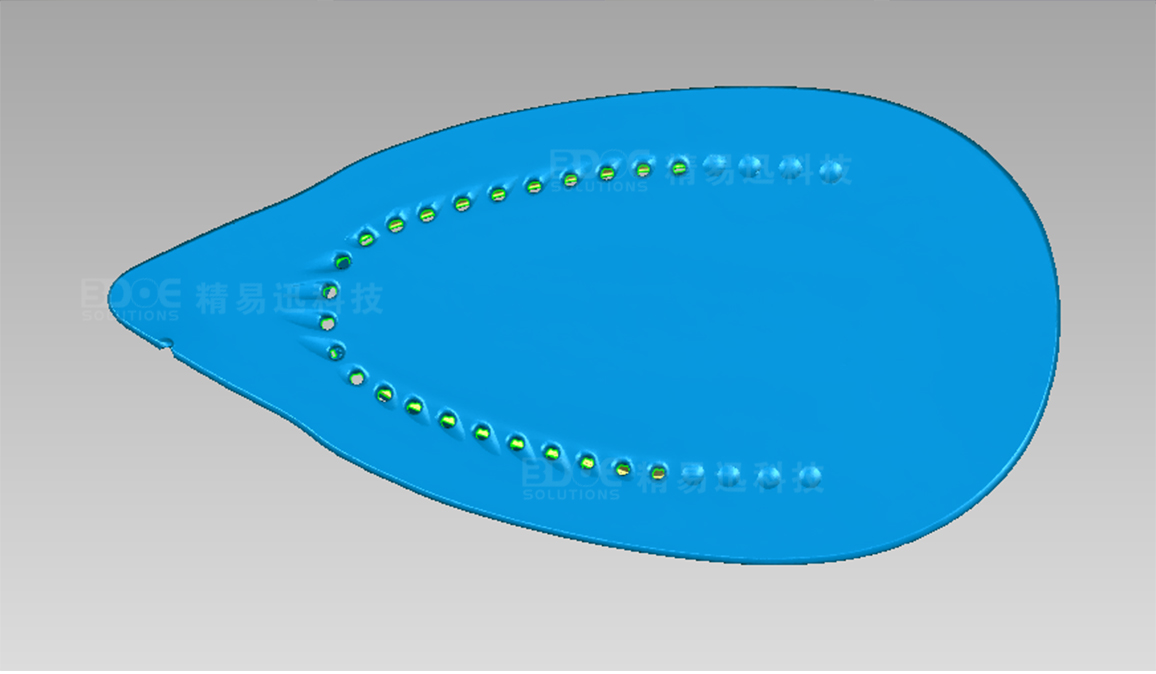

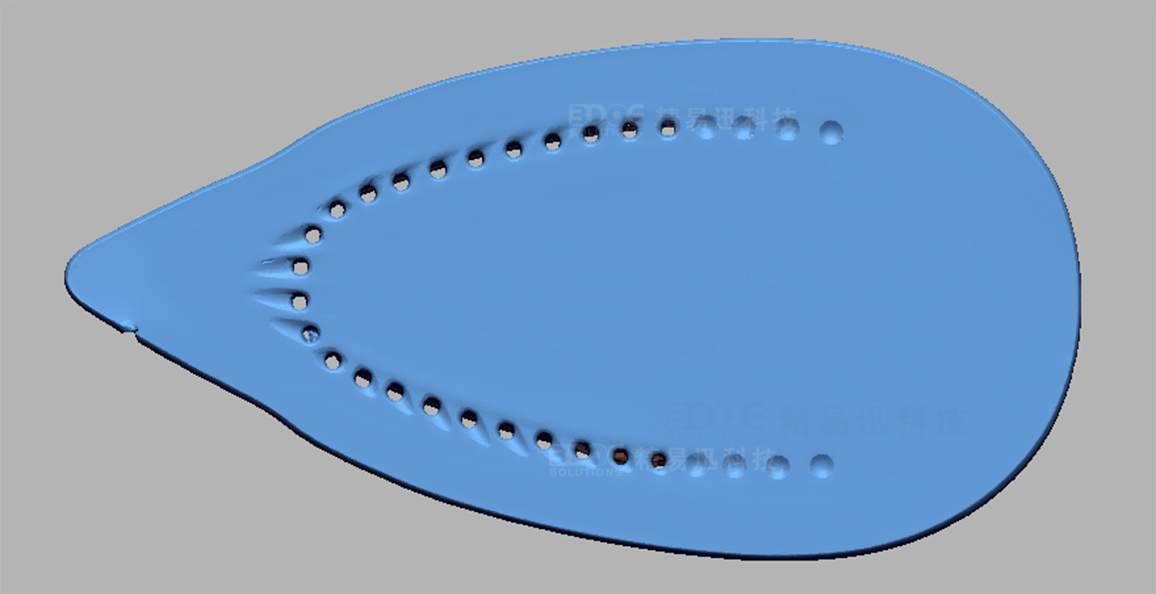

2. Scan the bottom plate of the electric iron. Our technical engineers use the blue-ray PTS camera 3D scanner (PTS-E) to scan to obtain the 3D data of the electric iron.

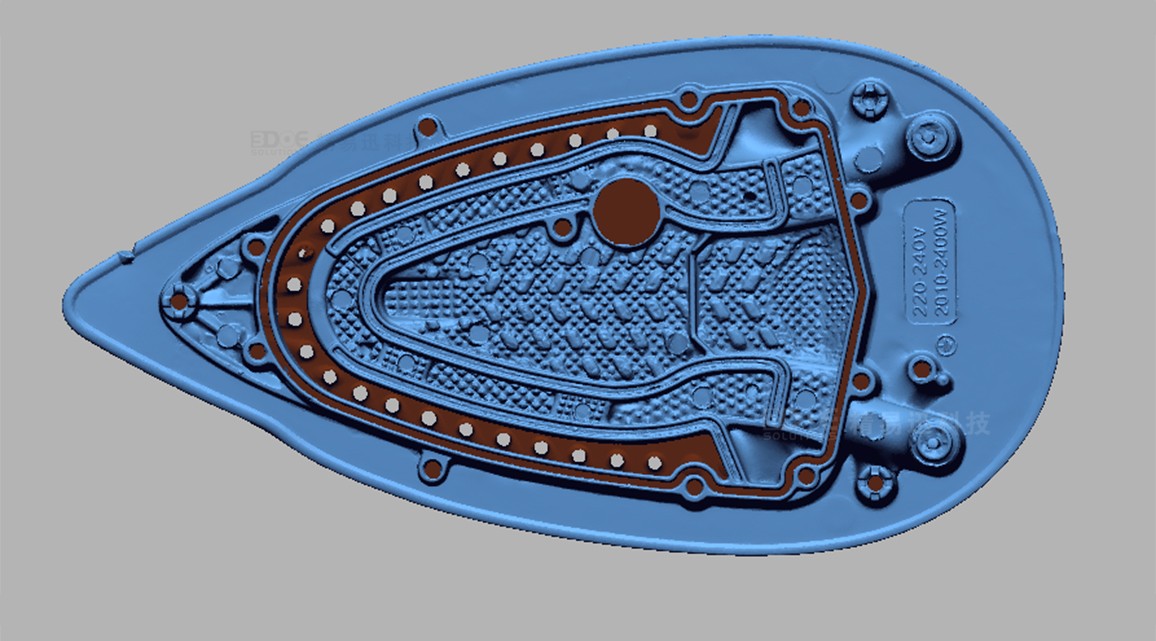

3. The soleplate of the electric iron is used for 3D reverse design drawing, and the STL data scanned by the Blu-ray 3D scanner is imported into the reverse drawing software for drawing.

Highlights of the Blu-ray PTS camera 3D scanner used in the 3D scanning reverse plan of the iron soleplate

1. Non-contact blue light 3D scanner

2. Quickly obtain 3D data of the soleplate of the electric iron

3. Can directly import 3D reverse software to draw pictures

4. Fast scanning speed and high precision

Summary of the 3D reverse solution for the iron soleplate:
Using Jingyixun’s blue-light PTS camera 3D scanner that is non-contact measurement, when collecting the shape data of the electric iron soleplate, the collection speed is fast, and the “point cloud” data can be formed. There is no harsh requirement for outside light. The blue-ray PTS camera-type 3D scanner can quickly obtain the 3D data of the iron soleplate, and modify the design directly on the 3D digital model according to customer needs to ensure that the all-round details of the iron soleplate can be reflected, simplify the traditional design process, save time, and improve the design effectiveness. At the same time, reverse software can be used to redesign the three-dimensional digital model of the iron soleplate to efficiently develop serialized products.

Related products

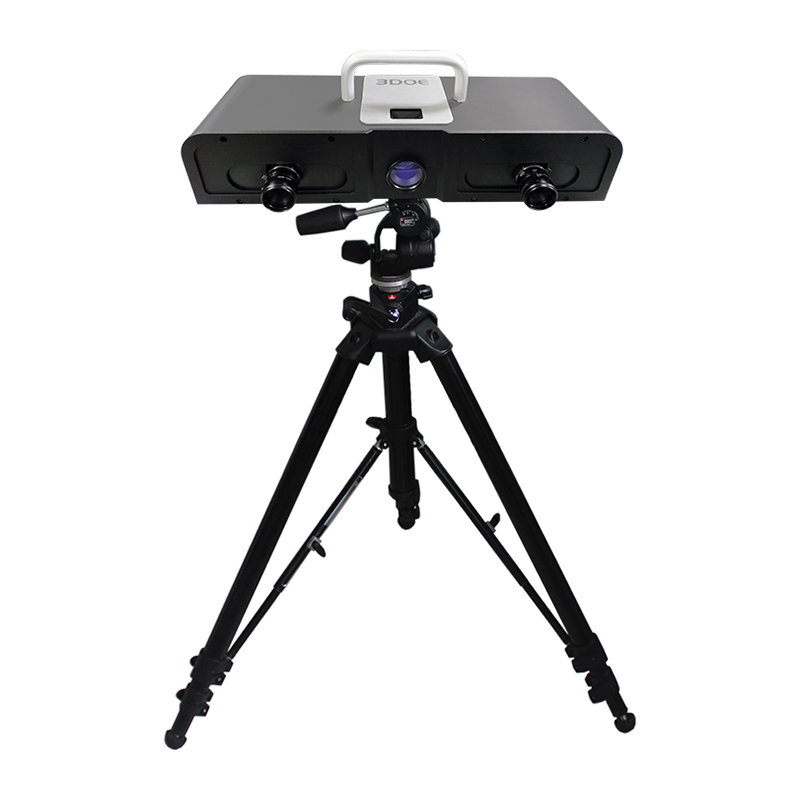

PTS-E series (binocular) photographing blue light 3D scanner
